Click on the links to view the pictures. Use your browser back button to return to this page.

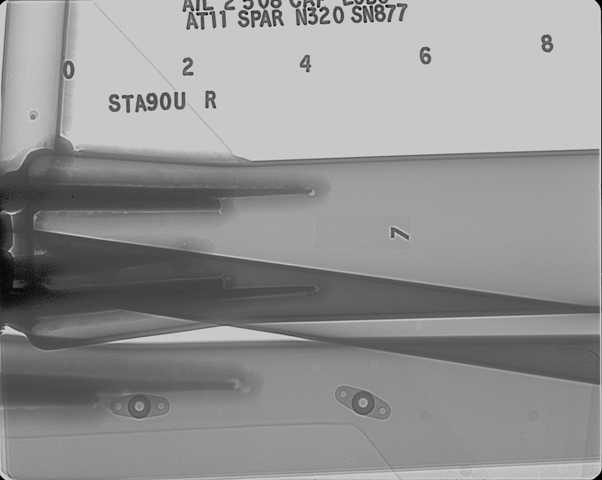

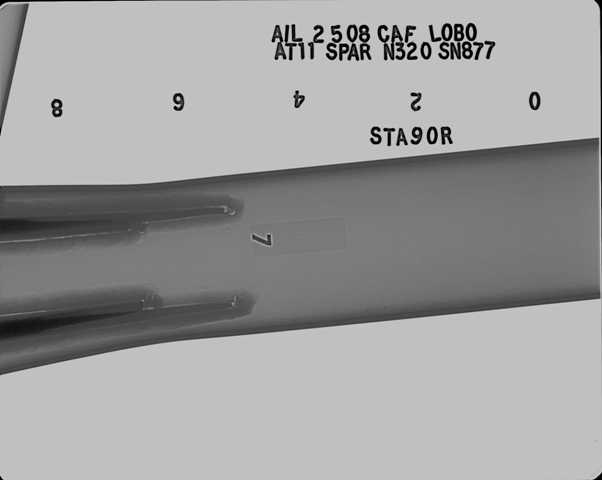

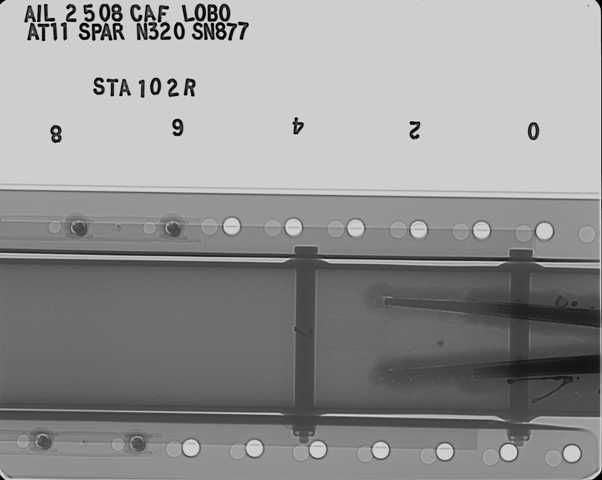

These are the pictures taken of the spar x-ray process conducted on February 5th, 2008. The process used was conducted by Dr. Klay Roberts of Atomic Inspection Labs. He used the very latest in digital x-ray technology and informed me that the detail generated would far exceed the requirements of the FAA Airworthiness Directive (AD). The results were excellent, the spar is almost completely clear of corrosion and there are no cracks. Oddly one of the original factory welds has poor penetration and must be repaired. We now know for sure that we have a good airplane. The pictures at the bottom show a few of the x-rays. These do not have the same level of detail as the actual x-rays but they do show the total lack of corrosion, and the amazing detail generated by the digital process. Because we had such good access to the spar we were also able to shot from more advantageous angles than normal.

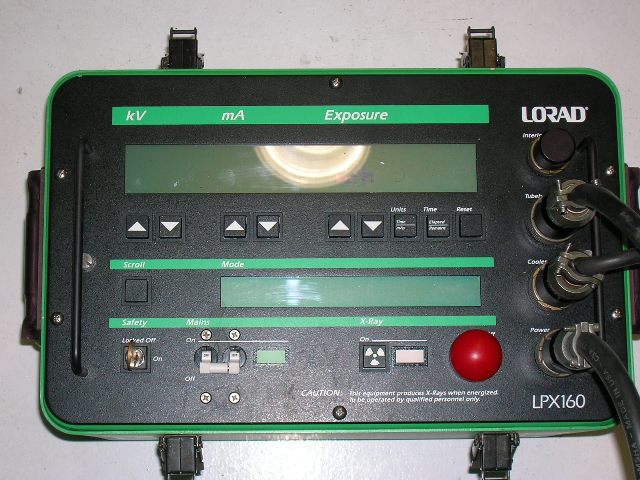

The main control box

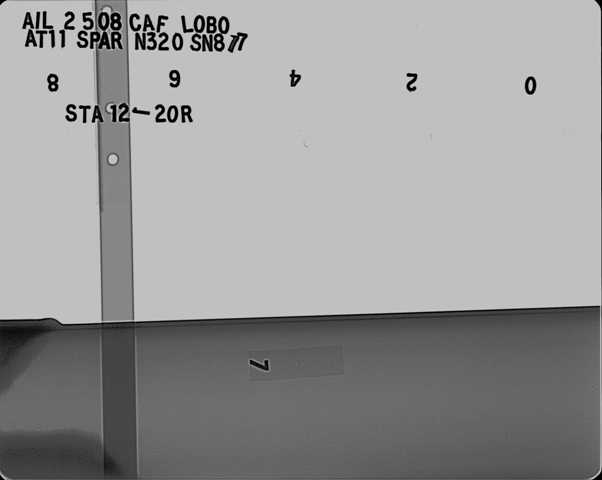

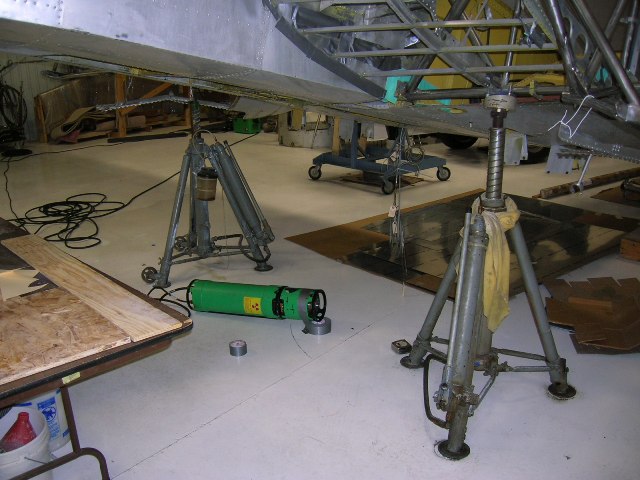

First shot ready to go on Station 12 to 20.

The equipment was set up plenty far from the plane.

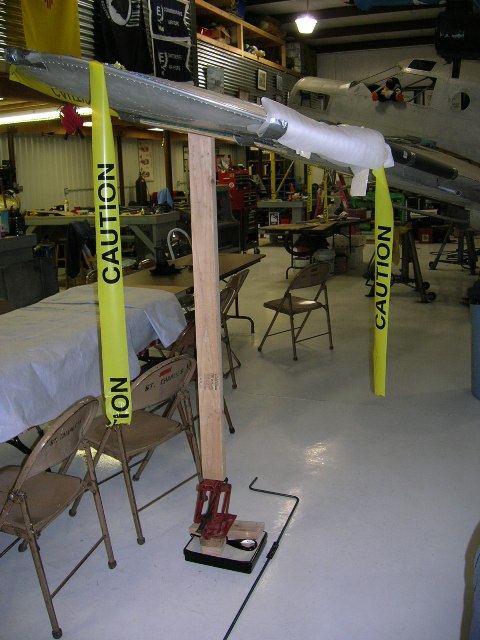

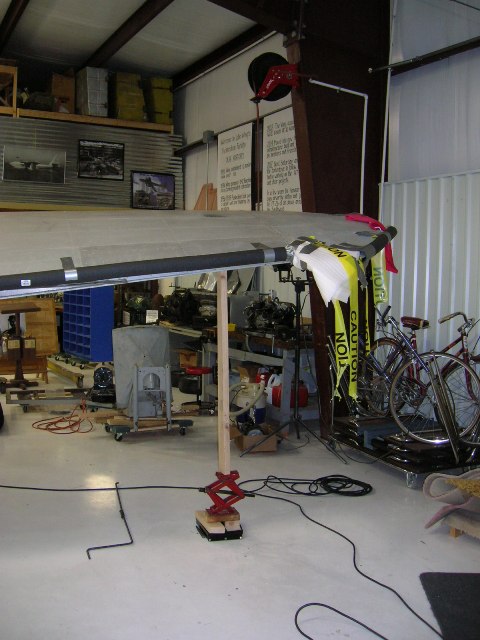

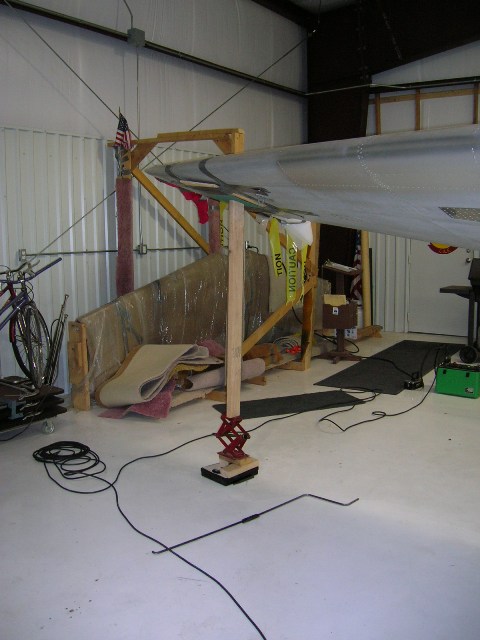

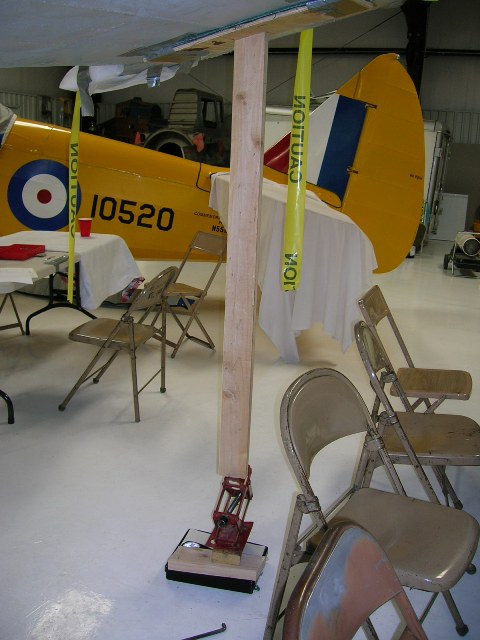

The AD requires the wings to be uploaded at wing station 10.

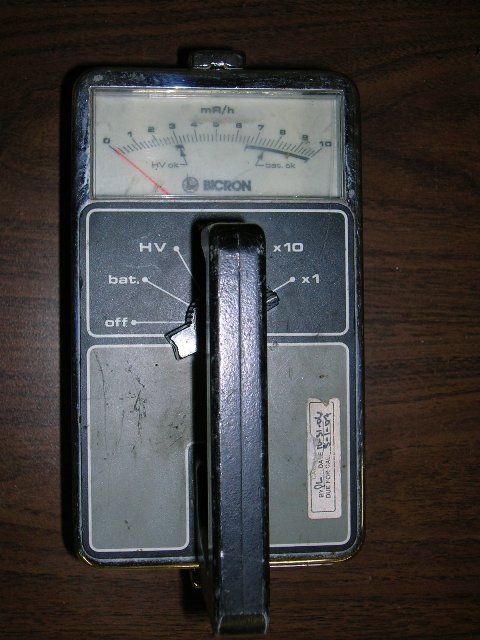

The milliRad meter to make sure we were safe.

We used what we could to get the correct angles for the various shots

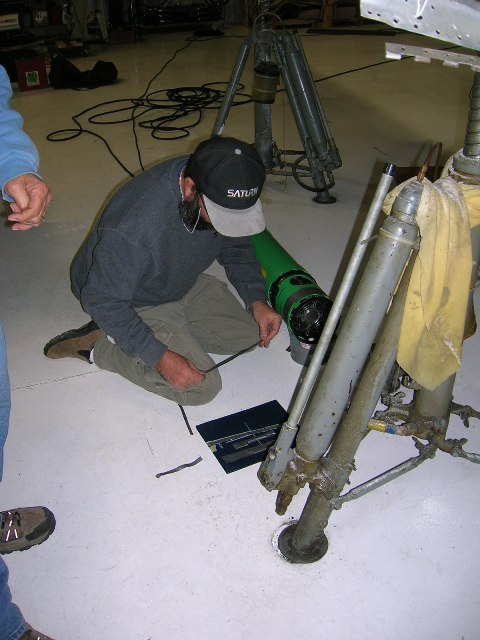

Each film had to be identified for location.

Note the fine tuning duct tape.

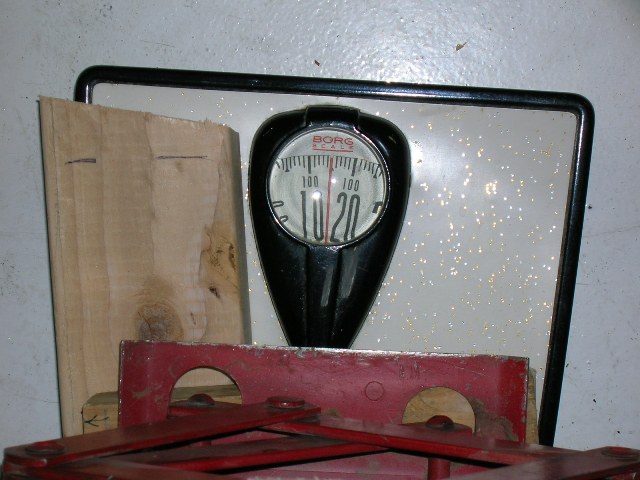

There is a specific weight that is required.

The sensor equipment and box of lead letters and numbers

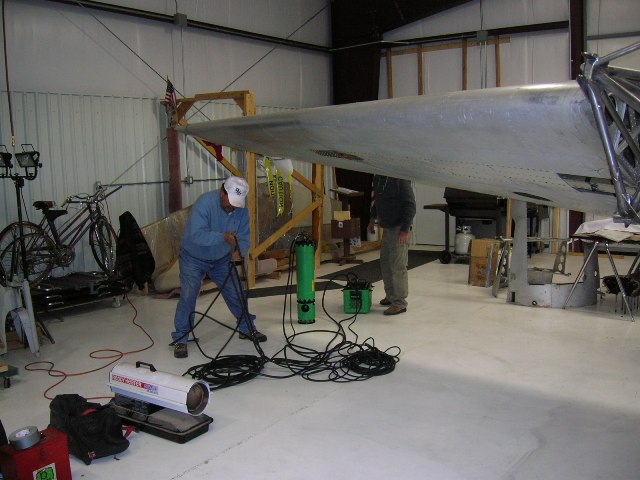

There is a lot of equipment to set up and warm up.

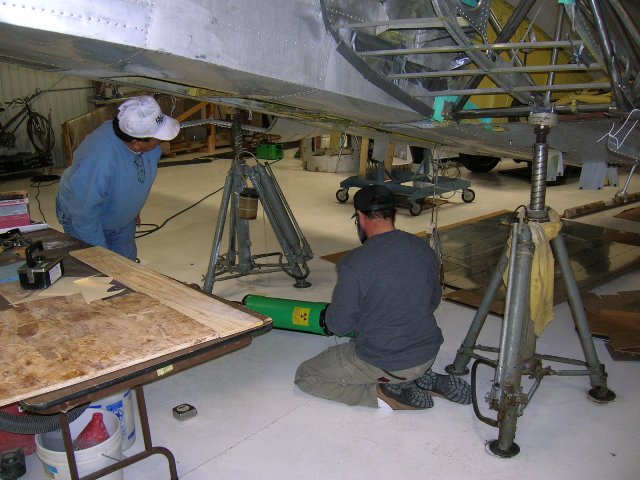

Setting up the transmitter for the initial shot.

This shot is actually part of the proposed spar AD modification and looks like new

The very complex landing gear cluster

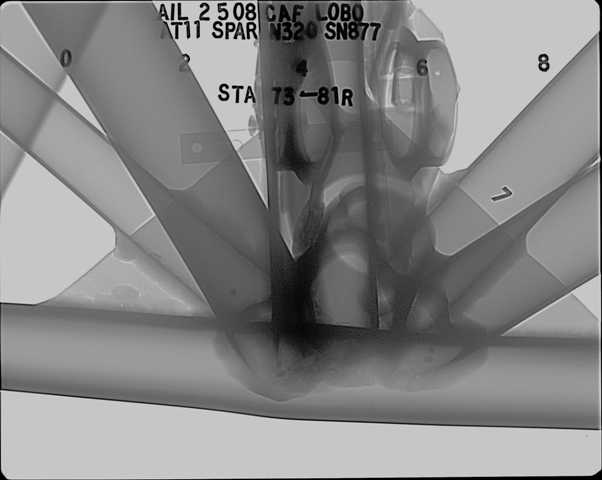

This is the shot that showed the bad factory weld

The inboard wing shot

The outboard wing shot

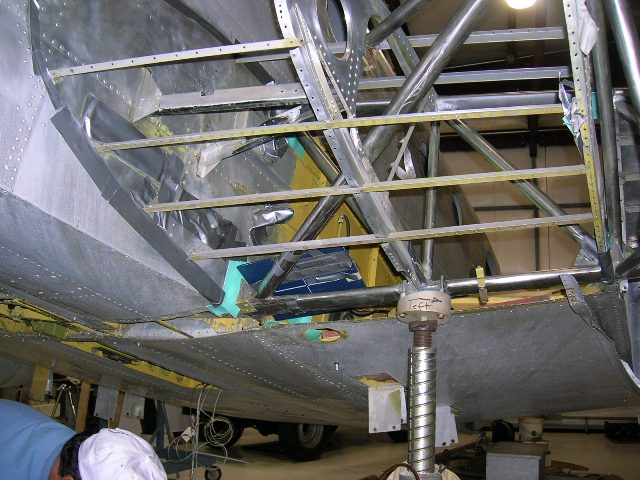

Station 32 setup

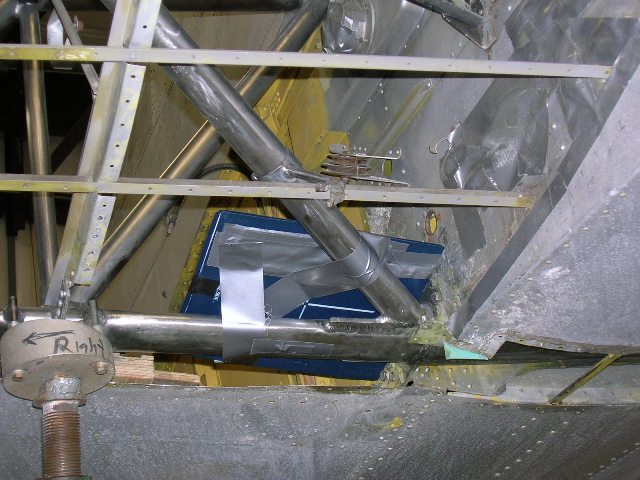

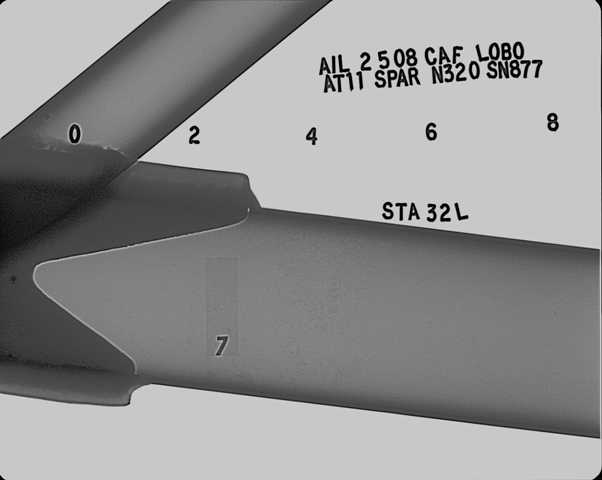

Station 32 on the right wing

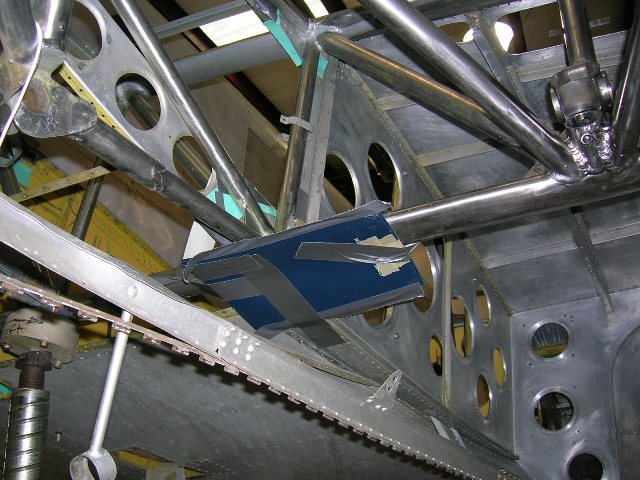

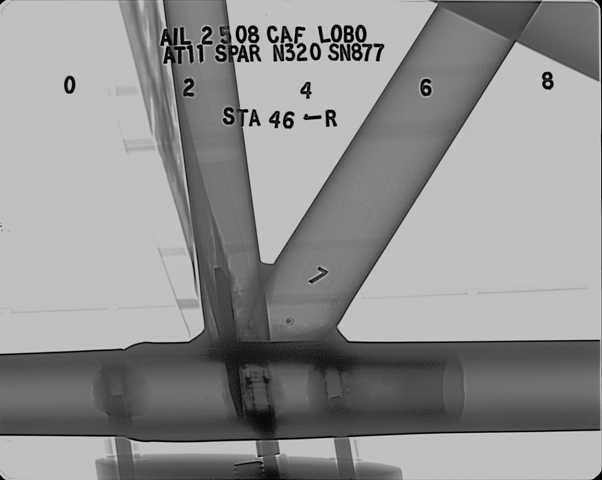

Station 46 had to be shot at several angles

First a downward shot

And then a front to back shot

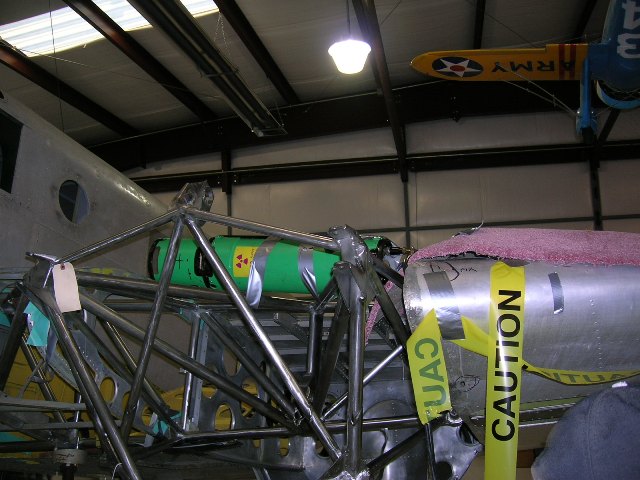

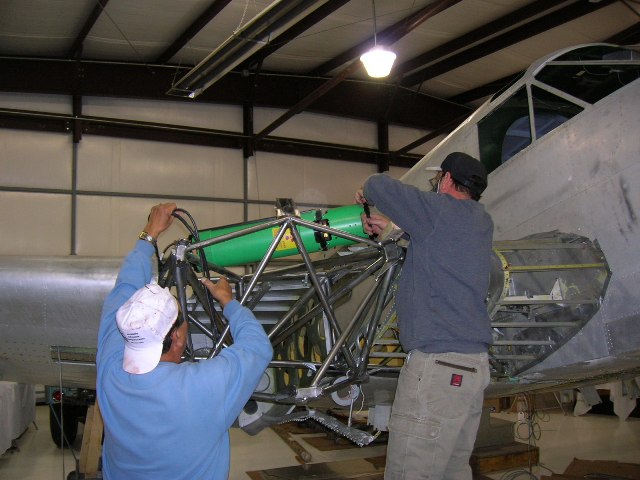

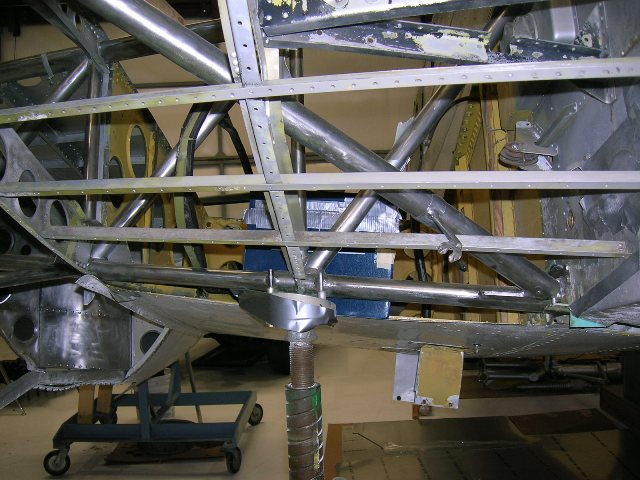

Station 46 setup on the right wing

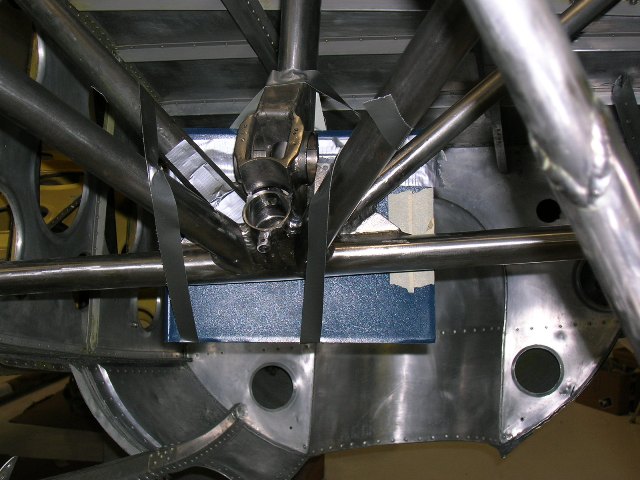

The setup for the landing gear cluster

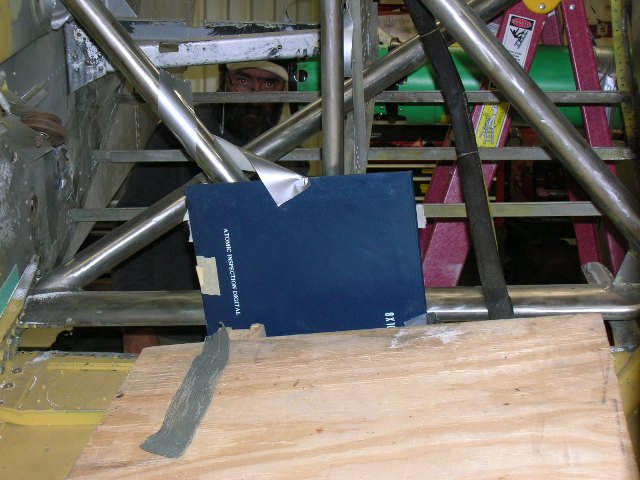

Rear view of landing gear cluster shot

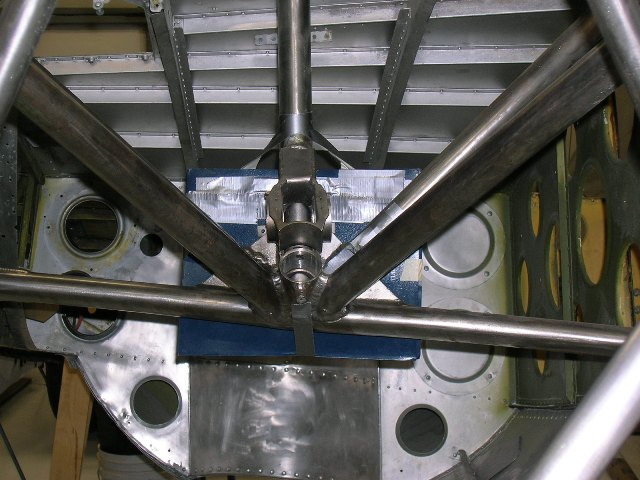

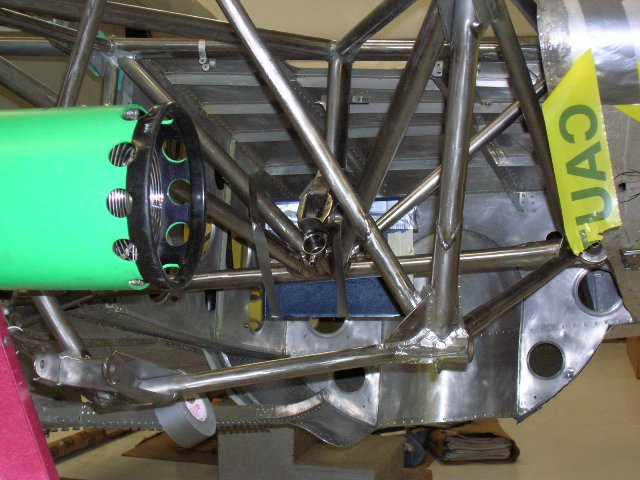

Landing Gear cluster setup

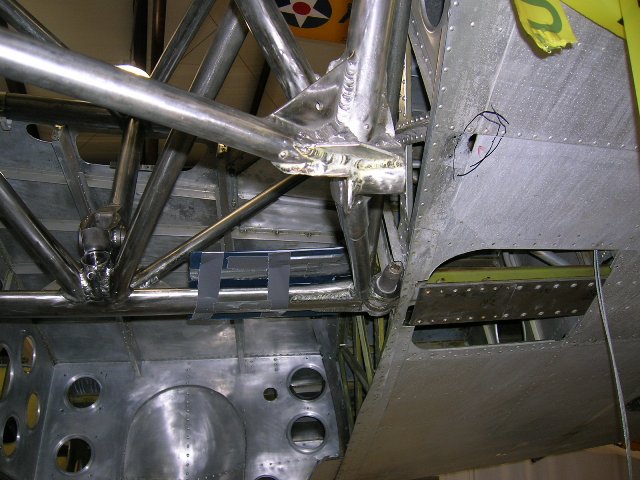

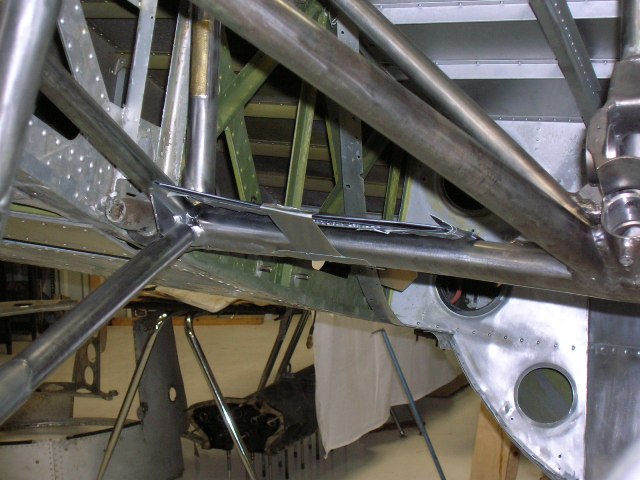

Set up for the lower wing attach point

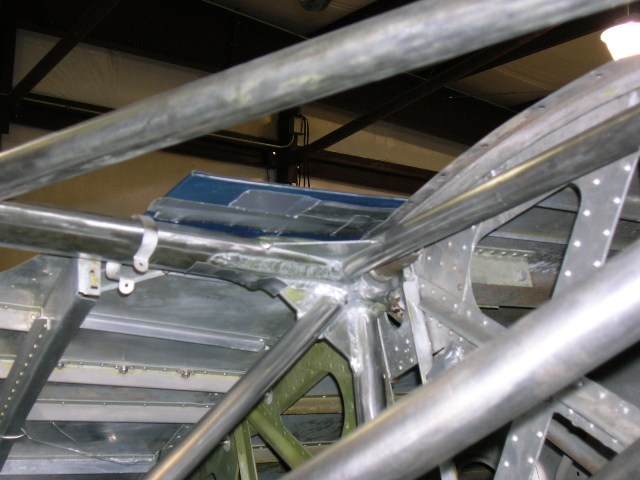

Set up for the upper wing attach shot

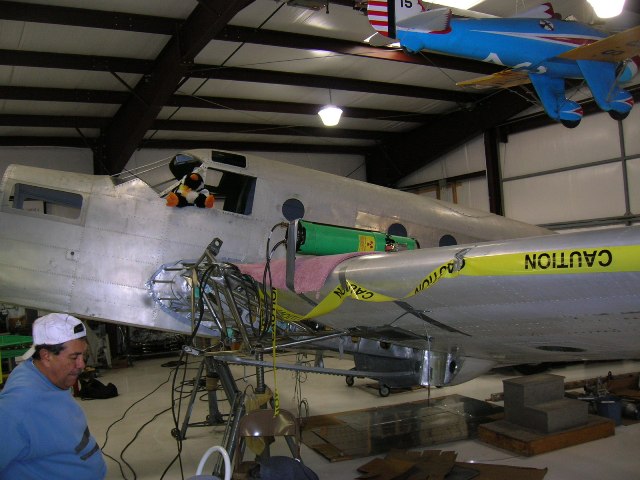

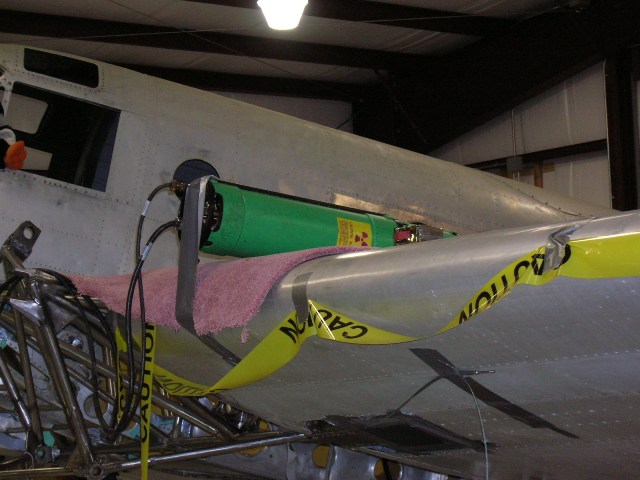

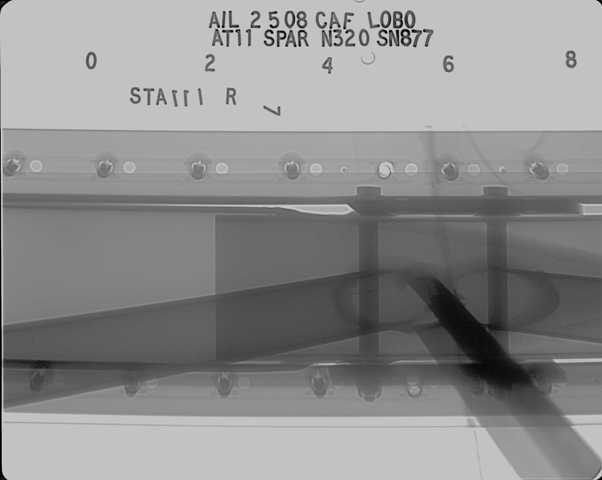

Placement of station 111 film

The most outboard shot has to also be shot with a downward view

Station 32 placement.
